Prius Labels

Every Prius carries a number of government and manufacturer labels found on the driver door jam and the engine compartment. Furthermore, Toyota provides an unambigious model for each vehicle so the right parts will be used with the correct model. Without it, an inattentive technician might attempt to apply a similar part from one model to another with potentially disasterous results.

Contents

1998-2000 Prius (NHW10)Edit

Body stamp:

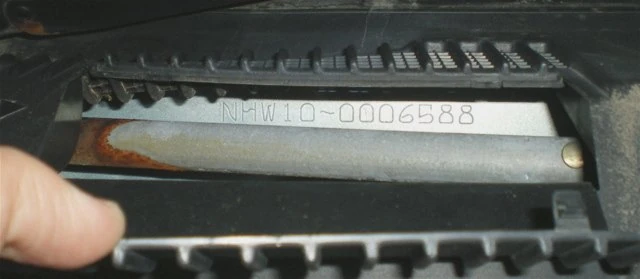

Model number and VIN number of NHW10 courtesy of Jeremy Wilkerson of Mk_1 Yahoo Group.
Bwilson4webAdded by Bwilson4web









Photo thanks to Mk_1 group.

2001-2003 Prius (NHW11)Edit

Body stamp:

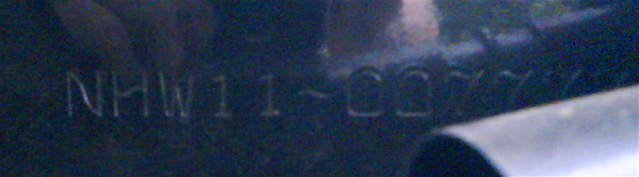

Toyota model number and body stamp.
Bwilson4webAdded by Bwilson4web

Door stamp:

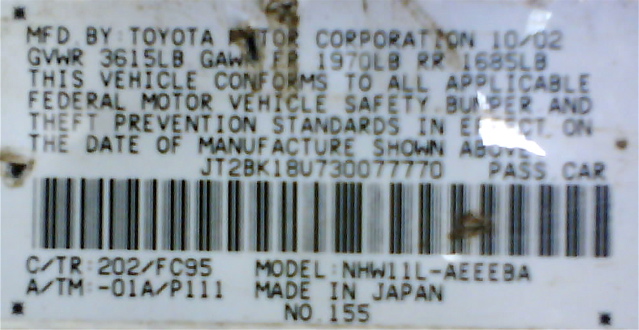

Door label showing the VIN and model number that match the body stamp.
Bwilson4webAdded by Bwilson4web










Photo curtesy of Bob Wilson, Huntsville, AL.

2004-2009 Prius (NHW20)Edit

Body stamp:

Door stamp:

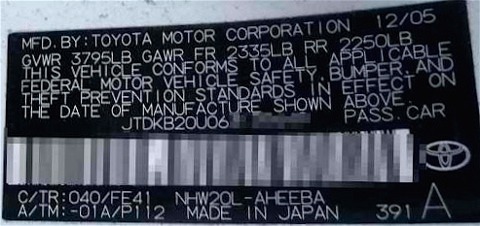

NHW20 door label from cwerdna.
Bwilson4webAdded by Bwilson4web

This is an example of the NHW20 model, door label.







Thanks!

2010-current Prius (ZVW30)Edit

Door stamp:

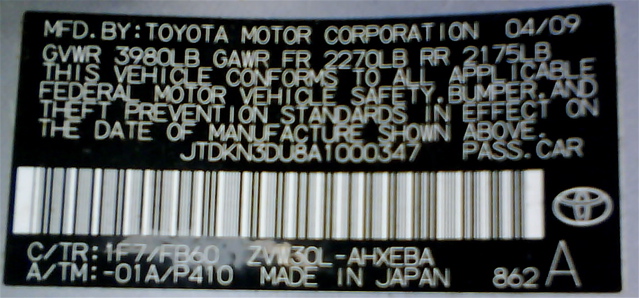

Door label showing model number, ZVW30.
Bwilson4webAdded by Bwilson4web
  • Showing 1 most recent

2 comments


38.107.179.243Anonymous User
Log in?
  Loading editor
  • If it'd be easier for me to upload a version of my NHW20 label that's 639 or 640 px wide, I can do that. Not sure if that'll help.

    • It makes it easier to fit in the wikia format. Any possibility of the body stamp behind the door in the firewall cover? Thanks, Bob Wilson
